 "YSL"high reflective galss beads() |
|
| refractive index |
color |
granularity
(mesh) |
opacity. |
out of roundness |
density |
mohs hardness |
coefficient of thermal expansion |
packing |
1.90-1.93
2.10-2.23 |
white or light yellow |
200-450 |
<5% |
<3% |
4.1¡À0.1¡¡ |
6-8 |
a(10-71¡æ)93 |
25Kg/barrel |
"YSL"high reflective glass beads speciality and use

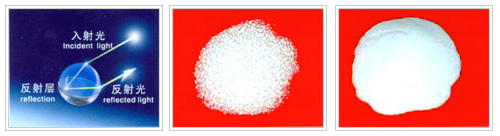

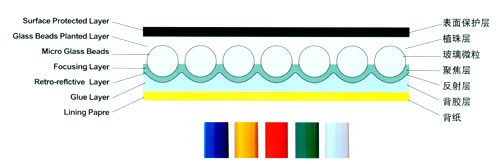

"YSL"brand high reflective glass beads is a key element of new pattern light functional compound material which used for producing reflective sheeting, reflective cloth, reflective dope and filtrated material etc. When the light illuminate on the glass bead surface, owing to high reflective functionality, the light focuses on the special reflective lay, strikes the back surface of glass bead and return to its source, It can be widely used for road, port ,mine , fire protection etc, and greatly enhanced the safety reliability for users.
At present our company can supply the glass beads with the reflective index is between 1.90 and 1.93, another one is between 2.10 and 2.23. The specification is between 200 mesh and 450mesh (can be supplied according to the grade). The glass beads are superior for its good fluidity,good chroma, and good spheroidal shape ,the diaphaneity is more than 95%,and the out of roundness is less than 3% .
| Order |
Specification(mesh) |
Diameter(um) |
reflective index |
| 1 |
200 |
>75 |
1.90-1.93 |
| 2 |
200-230 |
75-65 |
| 3 |
230-250 |
65-60 |
| 4 |
250-270 |
60-53 |
| 5 |
250-300 |
60-46 |
| 6 |
270-300 |
53-46 |
| 7 |
270-325 |
53-43 |
| 8 |
300-350 |
46-40 |
| 9 |
350-400 |
40-35 |
| 10 |
400-450 |
35-28 |
| Order |
Specification(mesh) |
Diameter(um) |
reflective index |
| 1 |
230 |
>65 |
2.10-2.23 |
| 2 |
230-250 |
65-60 |
| 3 |
250-300 |
60-46 |
| 4 |
300-350 |
46-40 |
| 5 |
250-400 |
40-35 |
| 6 |
400 |
<35 | |
|
|
|
